sf_daq_buffer

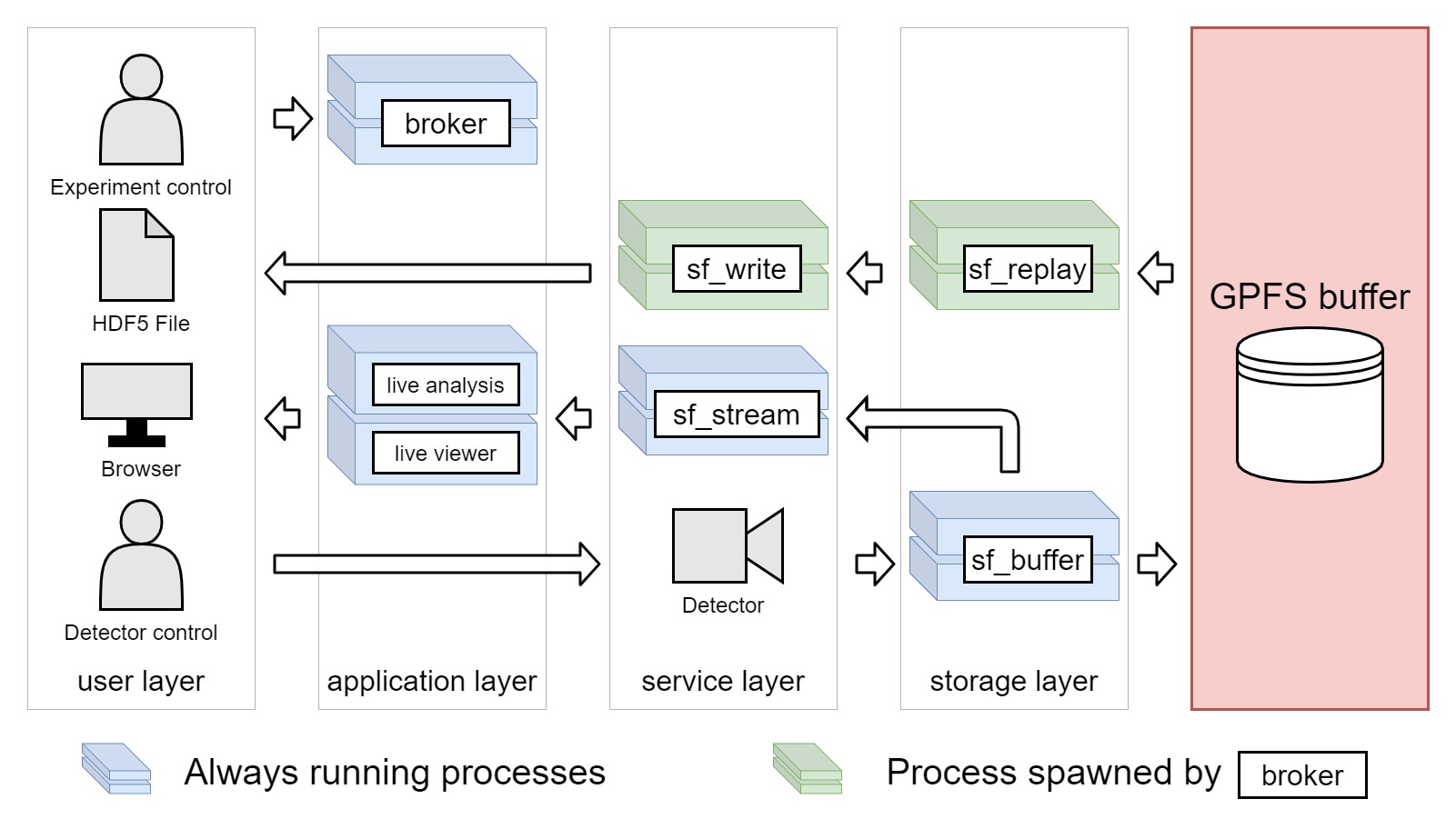

Overview of current architecture and component interaction.

Useful links

Architecture

• POSIX compliant write order test on GPFS https://svn.hdfgroup.org/hdf5/branches/hdf5_1_10_0/test/POSIX_Order_Write_Test_Report.pdf
• Best Practice Guide - Parallel I/O https://prace-ri.eu/wp-content/uploads/Best-Practice-Guide_Parallel-IO.pdf
• MPI-IO/GPFS, an Optimized Implementation of MPI-IO on top of GPFS https://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=1592834
• 10GE network tests with UDP - European XFEL https://indico.cern.ch/event/212228/contributions/1507212/attachments/333941/466017/10GE_network_tests_with_UDP.pdf

Software

• Intro to lock free programming https://preshing.com/20120612/an-introduction-to-lock-free-programming/
• JSON library benchmarks https://github.com/miloyip/nativejson-benchmark
• Kernel bypass https://blog.cloudflare.com/kernel-bypass/
• PACKET_MMAP https://www.kernel.org/doc/Documentation/networking/packet_mmap.txt
• Hyperslab selection https://support.hdfgroup.org/HDF5/Tutor/phypecont.html
• Caching and Buffering in HDF5 https://de.slideshare.net/HDFEOS/caching-and-buffering-in-hdf5
• Chunking in HDF5 https://portal.hdfgroup.org/display/HDF5/Chunking+in+HDF5
• Setting Raw Data Chunk Cache Parameters in HDF5 https://support.hdfgroup.org/pubs/rfcs/RFC_chunk_cache_functions.pdf

Linux configuration

• CFS: Completely fair process scheduling in Linux https://opensource.com/article/19/2/fair-scheduling-linux
• perf sched for Linux CPU scheduler analysis http://www.brendangregg.com/blog/2017-03-16/perf-sched.html
• Tuning CPU scheduler for reducing latency https://www.scylladb.com/2016/06/10/read-latency-and-scylla-jmx-process/
• RHEL7: How to get started with CGroups. https://www.certdepot.net/rhel7-get-started-cgroups/
• Cpusets https://www.kernel.org/doc/Documentation/cgroup-v1/cpusets.txt
• Understanding mlx5 ethtool Counters https://community.mellanox.com/s/article/understanding-mlx5-ethtool-counters
• Red Hat Enterprise Linux Network Performance Tuning Guide https://access.redhat.com/sites/default/files/attachments/20150325_network_performance_tuning.pdf
• Low latency 10Gbps Ethernet https://blog.cloudflare.com/how-to-achieve-low-latency/
• Monitoring and Tuning the Linux Networking Stack: Receiving Data https://blog.packagecloud.io/eng/2016/06/22/monitoring-tuning-linux-networking-stack-receiving-data/#procnetsoftnet_stat
• Making linux do hard real-time https://www.slideshare.net/jserv/realtime-linux
• Linux timing and scheduling granularity https://fritshoogland.wordpress.com/2018/03/13/linux-timing-and-scheduling-granularity/
• Raw Ethernet Programming: Basic Introduction - Code Example https://community.mellanox.com/s/article/raw-ethernet-programming--basic-introduction---code-example
• Performance Tuning for Mellanox Adapters https://community.mellanox.com/s/article/performance-tuning-for-mellanox-adapters
• UEFI Workload-based Performance and TuningGuide for HPE ProLiant Gen10 https://support.hpe.com/hpesc/public/docDisplay?docId=a00016408en_us

Build

To compile this repo you will need to install the following packages on RH7:

• devtoolset-9
• cmake3
• zeromq-devel
• hdf5-devel

yum install devtoolset-9
yum install cmake3
yum install zeromq-devel
yum install hdf5-devel
yum install jsoncpp-devel

Step by step procedure to build the repo:

scl enable devtoolset-9 bash
git clone https://github.com/paulscherrerinstitute/sf_daq_buffer.git
cd sf_daq_buffer
mkdir build
cd build/
cmake3 ..
make

It is recommended to create symbolic links to the executables you will be using inside your PATH.

Example:

ln -s "$(pwd)""/""sf_buffer" /usr/bin/sf_buffer
ln -s "$(pwd)""/""sf_stream" /usr/bin/sf_stream
ln -s "$(pwd)""/""sf_replay" /usr/bin/sf_replay
ln -s "$(pwd)""/""sf_writer" /usr/bin/sf_writer

Terminology

In order to unify the way we write code and talk about concept the following terminology definitions should be followed:

• frame (data from a single module)
• image (data of the assembled image)
