In which X-ray energy range can I use the detector?

What limits the energy range in which the detector can be used is defined both by the sensors characteristics and the readout electronics.

Sensors

Most of the SLS detectors make use of silicon sensors.

Since silicon is a relatively light for hard X-rays the only limitation at high energies is the acceptable absorption efficiency that can be achieved in the sensors thickness.

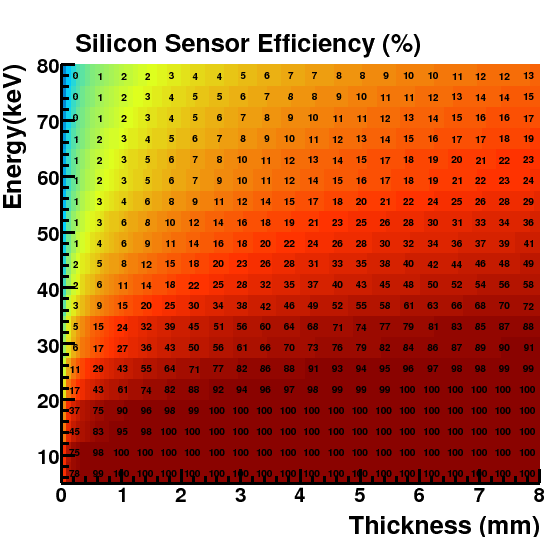

Figure 2.1 shows the absorption efficiency as a function of the X-ray energy and detector thickness. Normally it is possible to use sensors up to 1 mm thick, while to achieve larger absorption thicknesses it is necessary tu assemble and control telescopic systems (possible up to a few mms).
To achieve larger absorption thicknesses, the sensors can be oriented in edge-on configuration (in particular strip sensors). However in this case one should take into consideration the dead entrance window due to the cutting distance from the strips, which is normally several hundreds micron, or even up to mms and reduces the absorption efficiency at lower energies.

Figure 2.1: Efficiency of a silicon sensor as a function of the sensors thickness and X-ray energy.
\includegraphics[width=\textwidth]{images/effiSiHardXRays2}

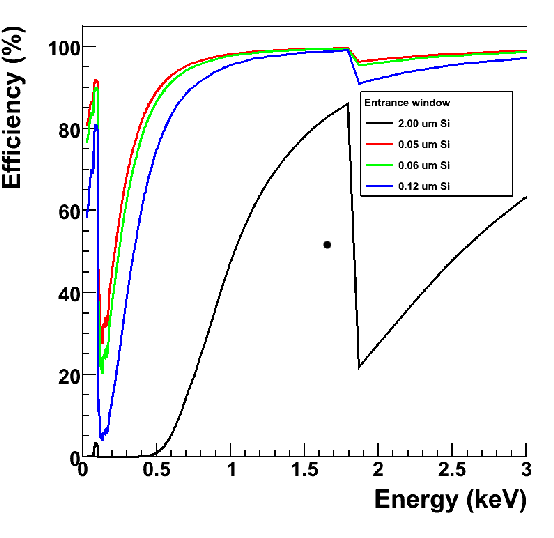

In standard face-on orientation, the backplane of the sensor acts as the entrance window. It presents a think n+ doped layer, which is unsensitive to radiation and causes a loss of efficiency at low energies. Figure 2.2 shows the absorption efficiency of the sensors for different backplane thicknesses at low energies.
The exact thickness of the backplane for standard SLS sensors is not exactly known but should be about 1-2 $ \mu$ m.

Figure 2.2: Efficiency of a silicon sensor as a function of the X-ray energy for different thicknesses of the backplane.
\includegraphics[width=\textwidth]{images/effiThinkBackplanes}

However for lower energies, the main limitation is normally given by the noise of the frontend electronics (if single photon resolution is required).
For higher energies it is also possible to use different sesnor materials as CdTe or Ge, although up to now they cannot provide the same signal quality as silicon.

Frontend electronics

The limitations on the energy range arising from the readout electronics come from the noise and from saturation. The electronic noise limits the minimum detectable energy for single photons, while saturation limits the maximum detectable signal either for single photons or in total.

Figure 2.3: Settings to be chosen for the MYTHEN detector as a function of the X-ray energy and radiation intensity.
\includegraphics[width=\textwidth]{images/settings}
