aare
Data analysis library for PSI hybrid detectors
Folder structure
| Folder | subfolder | Content |
|---|---|---|
| include/ | aare/ | top level header/s |
| core/ | include/ | public headers for core |
| src/ | source files and non public headers |

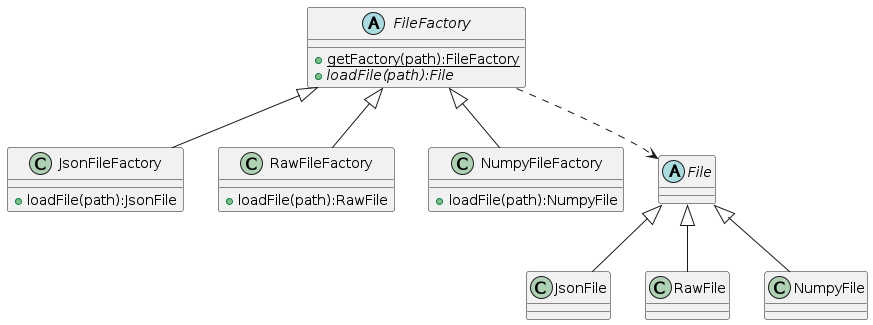

file_io class diagram
Test the zmq socket with a detector simulator
1. Download and build the slsDetectorPackage
git clone https://github.com/slsdetectorgroup/slsDetectorPackage.git --branch=8.0.1 #or the desired branch
cd slsDetectorPackage
mkdir build && cd build
cmake .. -DSLS_USE_SIMULATOR=ON
make -j8 #or your number of cores
2. Launch the slsReceiver
bin/slsReceiver
3. Launch the virtual server
bin/jungfrauDetectorServer_virtual
4 Configure the detector simulator
#sample config file is in etc/ in the aare repo
sls_detector_put config etc/virtual_jf.config
#Now you can take images using sls_detector_acquire
sls_detector_acquire
5. Run the zmq example
examples/zmq_example
#Will print the headers fof the frames received
Test the zmq processing replaying data
To be implemented
generate documentation
# for doxygen documentation
doxygen .doxygen.config
# for automatically generated plant uml diagrams
clang-uml
