aare

Data analysis library for PSI hybrid detectors

Folder structure

Folder	subfolder	Content
include/	aare/	top level header/s
core/	include/	public headers for core
	src/	source files and non public headers

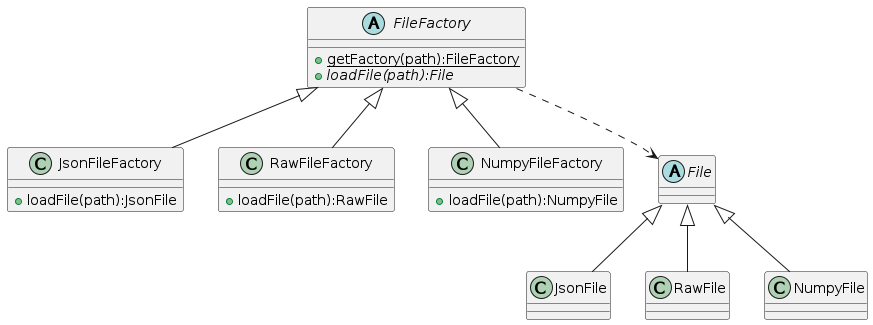

file_io class diagram

Test the zmq socket with a detector simulator

1. Download and build the slsDetectorPackage

git clone https://github.com/slsdetectorgroup/slsDetectorPackage.git --branch=8.0.1 #or the desired branch
cd slsDetectorPackage
mkdir build && cd build
cmake .. -DSLS_USE_SIMULATOR=ON
make -j8 #or your number of cores

2. Launch the slsReceiver

bin/slsReceiver

3. Launch the virtual server

bin/jungfrauDetectorServer_virtual

4 Configure the detector simulator

#sample config file is in etc/ in the aare repo
sls_detector_put config etc/virtual_jf.config

#Now you can take images using sls_detector_acquire
sls_detector_acquire

5. Run the zmq example

examples/zmq_example

#Will print the headers fof the frames received

Test the zmq processing replaying data

To be implemented
