Scan Control

Purpose:

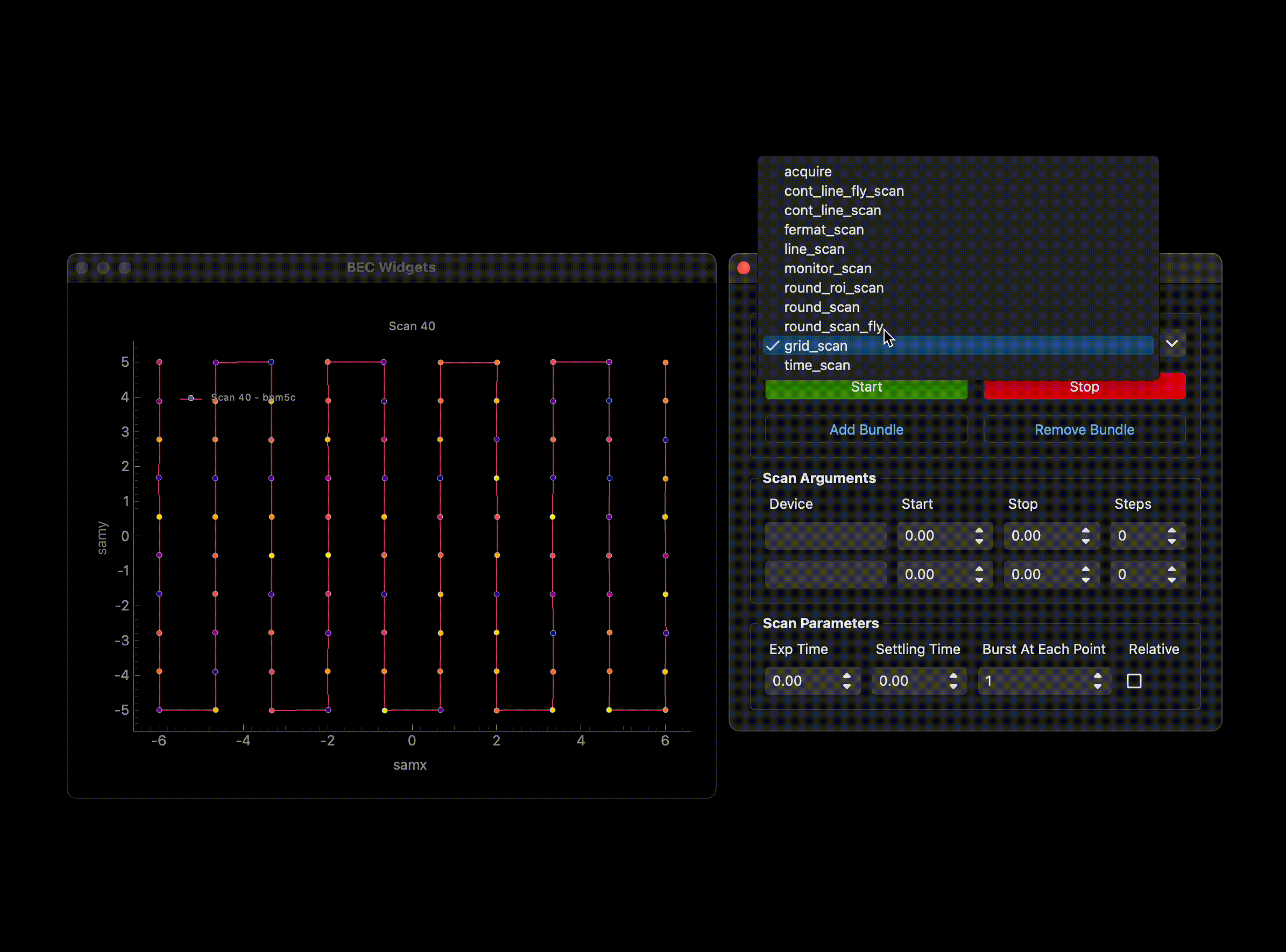

The ScanControl widget is designed to generate a graphical user interface (GUI) to control various scan operations based on the scan's signature and gui_config. The widget is used to control the scan operations, such as starting, stopping, and pausing the scan. The widget also provides a graphical representation of the scan progress and the scan status. The widget is designed to be used in conjunction with the ScanServer and ScanBundler services from the BEC core services.

By default the widget supports only the scans which have defined gui_config and are inhereted from these scan classes:

• ScanBase
• SyncFlyScanBase
• AsyncFlyScanBase

Key Features:

• Automatically generates a control interface based on scan signatures and gui_config.
• Supports adding and removing argument bundles dynamically.
• Provides a visual representation of scan parameters grouped by functionality.
• Integrates start and stop controls for executing and halting scans.

Example of Use:

Code example: The following code snipped demonstrates how to create a ScanControl widget using BEC Widgets within BECIPythonClient

scan_control = gui.add_dock().add_widget("ScanControl")
