`musrgui / musredit`

1 Introduction

musrgui and musredit are editors which also provide a graphical user interface to the programs contained in the musrfit suite and are intended to help the user handle musrfit msr files. They are implemented in C++ and use the Qt framework. Principally, musrgui and musredit are doing the same, but are based on different Qt versions. musrgui is based on Qt 3.x and will only be maintained on bug-fixing level since the Qt 3.x licensing is less straight forward than the Qt 4.x one. musredit is based on Qt 4.6 (or above) and this is the program which will be developed further.
On this documentation page only the features related to musrfit are described—the basic editor functions which should be self-explanatory are not. Before going on using musrgui / musredit it is strongly recommended to read the manual of musrfit first!

2 Available Executables, Configuration Files and their Basic Usage

2.1 musrgui / musredit

musrgui / musredit are the editor executables. If called from within a shell they accept a few optional parameters:

<msr_files>: file names of the msr files that should be opened in separate editor tabs on startup of musrgui / musredit.
--help: displays a small help notice in the shell explaining the basic usage of the program
--version: prints the version number of musrgui / musredit

If called without any parameters an empty editor window opens.

2.2 musrgui_startup.xml / musredit_startup.xml

musrgui_startup.xml / musredit_startup.xml are configuration files located at the musrgui / musredit binary path. It is also possible to have another version of this file in the working directory which then will be used!

In this file the following XML tags are allowed to define settings and might proof useful for all users of musrgui / musredit:

<general></general>

set the default paths to executables and files in this environment

<exec_path>PATH_TO_EXEC</exec_path>: set the path PATH_TO_EXEC where the executables musrfit, musrview, musrt0, etc. can be found (inside the <general> environment)
<default_save_path>SAV_PATH</default_save_path>: specify the path SAV_PATH where musrgui / musredit point by default when opening and saving msr files (inside the <general> environment)
<msr_default_file_path>MSR_DEF_PATH</msr_default_file_path>: set the path MSR_DEF_PATH where the default msr files provided by musrgui are stored (inside the <general> environment)
<title_from_data_file>y/n</title_from_data_file>: specify if musrfit should be called with the -t option by default (inside the <general> environment)
<enable_musrt0>y/n</enable_musrt0>: specify if musrt0 can be called from within musrgui / musredit (inside the <general> environment)

<font_settings></font_settings>

set the default font in this environment

<font_name>FONT</font_name>: specify the name of the font FONT to be used by default in musrgui / musredit (inside the <font_settings> environment)
<font_size>N</font_size>: specify the size N of the font to be used by default in musrgui / musredit (inside the <font_settings> environment)

<msr_file_defaults></msr_file_defaults>

put the default settings for newly created msr files in this environment

<beamline>BL</beamline>: set the name of the muon beamline BL here (inside a <msr_file_defaults>-environment)
<institute>INST</institute>: set the name of the facility INST where the beamline BL is located. Valid settings are PSI, RAL, JPARC, and TRIUMF (inside a <msr_file_defaults> environment)
<file_format>FF</file_format>: specify the default data file format FF here. Valid formats are NEXUS, ROOT-NPP, ROOT-PPC, PSI-BIN, PSI-MDU, MDU-ASCII, WKM, MUD, ASCII, and DB (inside a <msr_file_defaults> environment)
<lifetime_correction>y/n</lifetime_correction>: choose if by default the lifetimecorrection option should be set (inside a <msr_file_defaults> environment)

<msr2data_defaults></msr2data_defaults>

define the default options for calling msr2data in this environment; the options set here are ticked by default in the graphical interface of musrgui / musredit.

<chain_fit>y/n</chain_fit>: (un)set the chain fit (!) option (inside a <msr2data_defaults> environment)
<write_data_header>y/n</write_data_header>: (un)set the noheader option (inside a <msr2data_defaults> environment)
<ignore_data_header_info>y/n</ignore_data_header_info>: (un)set the nosummary option (inside a <msr2data_defaults> environment)
<keep_minuit2_output>y/n</keep_minuit2_output>: (un)set the -k option (inside a <msr2data_defaults> environment)
<write_column_data>y/n</write_column_data>: (un)set the data option (inside a <msr2data_defaults> environment)
<create_msr_file_only>y/n</create_msr_file_only>: (un)set the msr option in case a template run is specified (inside a <msr2data_defaults> environment)
<fit_only>y/n</fit_only>: (un)set the fit option in case no template run is specified (inside a <msr2data_defaults> environment)
<global>y/n</global>: (un)set the global option (inside a <msr2data_defaults> environment)
<global_plus>y/n</global_plus>: (un)set the global+ option (inside a <msr2data_defaults> environment)
<recreate_data_file>y/n</recreate_data_file>: (un)set the musrgui / musredit option for recreating the output file (inside a <msr2data_defaults> environment)
<open_file_after_fitting>y/n</open_file_after_fitting>: (un)set the musrgui / musredit option for opening msr files after fitting (inside a <msr2data_defaults> environment)

Additionally, there are some settings defined in this XML file which should be only changed by experienced users who like to add new features to musrgui / musredit:

<help_section></help_section>

define various help messages in this environment

<help_main>HELP TEXT</help_main>: set the main help message HELP TEXT here (inside a <help_section> environment)

<func_pixmap_path>PIX_PATH</func_pixmap_path>

set the path PIX_PATH to

pixmaps visualizing the various supported theory functions

<theory_functions></theory_functions>

define the functions for a msr file's THEORY block according to the correct syntax in this environment

<func></func>

specify a function here (inside a <theory_functions> environment)

<name>NAME</name>: the NAME of the function in the msr file (inside a <func> environment)
<comment>COMMENT</comment>: description of the used parameters (inside a <func> environment)
<label>LABEL</label>: LABEL of the function in the musrgui / musredit menu (inside a <func> environment)
<pixmap>PIXMAP</pixmap>: picture used to describe the function and stored in the PIX_PATH (inside a <func> environment)
<params>N</params>: number of parameters N used by the function (inside a <func> environment)

An example of the musrgui_startup.xml looks like:

<?xml version="1.0" encoding="UTF-8"?>
<musrgui_startup xmlns="https://intranet.psi.ch/MUSR/MusrGui">
  <general>
    <exec_path>/usr/local/bin</exec_path>
    <default_save_path>./</default_save_path>
    <msr_default_file_path>/home/user/analysis/musrfit/src/musrgui</msr_default_file_path>
  </general>
  <font_settings>
    <font_name>Courier New</font_name>
    <font_size>10</font_size>
  </font_settings>
  <msr_file_defaults>
    <beamline>mue4</beamline>
    <institute>psi</institute>
    <file_format>root-npp</file_format>
    <lifetime_correction>y</lifetime_correction>
  </msr_file_defaults>
  <msr2data_defaults>
    <chain_fit>y</chain_fit>
    <write_data_header>y</write_data_header>
    <ignore_data_header_info>n</ignore_data_header_info>
    <keep_minuit2_output>n</keep_minuit2_output>
    <write_column_data>n</write_column_data>
    <recreate_data_file>n</recreate_data_file>
    <open_file_after_fitting>y</open_file_after_fitting>
    <create_msr_file_only>n</create_msr_file_only>
    <fit_only>n</fit_only>
    <global>n</global>
    <global_plus>n</global_plus>
  </msr2data_defaults>
  <help_section>
    <help_main>
      For a detailed description of the aim and structure of a msr file see http://lmu.web.psi.ch/facilities/software/musrfit/user/MUSR/MusrFit.html
    </help_main>
  </help_section>
  <func_pixmap_path>/home/user/analysis/musrfit/src/musrgui/latex_images</func_pixmap_path>
  <theory_functions>
    <func>
      <name>asymmetry</name>
      <comment></comment>
      <label>Asymmetry</label>
      <pixmap>asymmetry.png</pixmap>
      <params>1</params>
    </func>
    <func>
      <name>simplExpo</name>
      <comment>(rate)</comment>
      <label>simple Exp</label>
      <pixmap>simpleExp.png</pixmap>
      <params>1</params>
    </func>
    <func>
      <name>simplGss</name>
      <comment>(rate)</comment>
      <label>simple Gauss</label>
      <pixmap>simpleGauss.png</pixmap>
      <params>1</params>
    </func>
  </theory_function>
</musrgui_startup>

3 `musrfit` Features

The features of musrfit which can be accessed by the graphical front ends musrgui / musredit are described in the following. All functions can either be called by choosing them from the MusrFit menu, by clicking the respective button in the MusrFit bar, or by using a keyboard shortcut.

Asymmetry Default (Alt+a): Generate a full msr file suitable for the fit type 2 of musrfit from defaults. Calling this function opens a window where the relative path and file name to a data file as well as the file format that should be used have to be specified. For instance if the data file /path-to-datadir/2007/lem07_his_8472.root should be used and /path-to-datadir is on the path where musrfit looks for data files then the file name would be 2007/lem07_his_8472 and the file format either ROOT-NPP or ROOT-PPC.

Single-Histogram Default (Alt+h): Generate a full msr file suitable for the fit type 0 of musrfit from defaults. Calling this function opens a window where the relative path and file name to a data file as well as the file format that should be used have to be specified. For instance if the data file /path-to-datadir/d2007/deltat_pta_gps_8472.bin should be used and /path-to-datadir is on the path where musrfit looks for data files then the file name would be d2007/deltat_pta_gps_8472 and the file format PSI-BIN.

Calculate Chisq (Alt+c)

musrfit <msr_file> --chisq-only

is called for the <msr_file> selected in the editor. For further information refer to the manual of musrfit.

Fit (Alt+f)

musrfit <msr_file> [optional parameters]

is called for the <msr_file> selected in the editor. The optional parameters may be chosen under Preferences. For further information refer to the manual of musrfit.

Swap Msr ↔ Mlog (Alt+s): Swap the msr and mlog files. E.g., for a file called 8472_zf.msr, this is copied to 8472_zf.mlog and vice versa.

Msr2data (Alt+m): Opens a graphical interface to the msr2data program described in detail in its own manual.

View (Alt+v)

musrview <msr_file>

is called for the <msr_file> selected in the editor. For further information refer to the manual of musrfit.

T0 (Alt+t)

musrt0 <msr_file>

is called for the <msr_file> selected in the editor. For further information refer to the manual of musrfit.

Preferences (Alt+p): Opens a window in which the optional parameters that should be passed to musrfit can be chosen. These options are --keep-mn2-output, --dump ascii, --dump root, and --title-from-data-file. For further information refer to the manual of musrfit. Additionally, the access to musrt0 can be enabled temporarily.

Dump Header: Opens a file dialog which allows to select a μSR data file. When this file can be read, the run header info is dumped into a dialog window. Essentially this calls dump_header internally.

4 Editor Features

Besides the functions described above and which are mostly interfacing musrfit/msr2data the editors of musrgui / musredit offer various functions for manipulating especially musrfit msr files: musrgui editor features

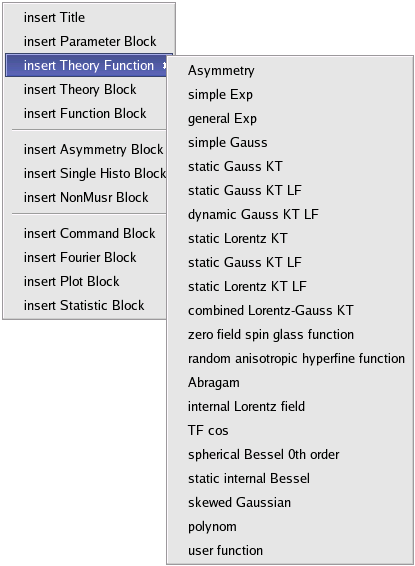

Upon right-clicking an open msr file a menu as shown to the right is displayed which offers the addition of any valid msr file block or theory function. In case a simple theory function is chosen, the function will be inserted into the THEORY block using the correct syntax. If one chooses to add a whole block to the file a dialog opens in which the necessary information for each block as described in the manual of musrfit can be supplied. This feature is available only in musrgui. In musredit the respective functions can be accessed through the Edit menu.
In order to comment or uncomment lines in a msr file select the according lines and apply Edit → (Un)Comment or use the keyboard shortcut Ctrl+(Shift)+m.

5 Bugtracking

For reporting bugs or requesting new features and improvements please use the PSI Tracker or send an e-mail to A. Suter.

-- BMW & AS
